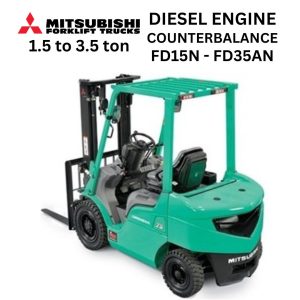

Forklift Mitsubishi FD20CN 2 Ton
| Characteristics | |
| Manufacturer (abbreviation) | Mitsubishi |
| Manufacturer’s model designation | FD20CN |
| Power source: (battery, diesel, LP gas, petrol) | Diesel |
| Operator type: pedestrian, (operator)-standing, -seated | Seated |
| Load capacity | 2000 |
| Load centre distance | 500 |
| Load distance, axle to fork face (forks lowered) | 415 |
| Wheelbase | 1400 |
| Weight | |
| Truck weight, without load / including battery (simplex mast, lowest lift height) | 3030 |
| Axle loading with maximum load, front/rear (simplex mast, lowest lift height) | 4330 / 700 |
| Axle loading without load, front/rear (simplex mast, lowest lift height) | 1020 / 2010 |
| Wheels, Drive Train | |
| Tyres: V=solid, L=pneumatic, SE=solid pneumatic – front/rear | SE/SE |
| Tyre dimensions, front | 6.50 – 10 – 5 |
| Tyre dimensions, rear | 5.00 – 8 – 3 |
| Number of wheels, front/rear (x=driven) | 2x/2 |
| Track width (centre of tyres), front | 890 |
| Track width (centre of tyres), rear | 900 |
| Dimensions | |
| Mast tilt, forwards/backwards | 06-Okt |
| Tow coupling height | 290 |
| Overall length | 3275 |
| Height with mast lowered (see tables) | 1990 |
| Length to fork face (includes fork thickness) | 2355 |
| Overall width | 1065 / – |
| Fork dimensions (thickness, width, length) | 35x100x920 |
| Fork carriage to DIN 15 173 A/B/no | 2A |
| Fork carriage width | 920 |
| Free lift (see tables) | 80 |
| Ground clearance under mast, with load | 110 |
| Ground clearance at centre of wheelbase, with load (forks lowered) | 135 |
| Working aisle width with 1000 × 1200 mm pallets, crosswise | 3635 |
| Working aisle width with 800 × 1200 mm pallets, crosswise | 3435 |
| Turning circle radius | 2020 |
| Minimum distance between centres of rotation | 550 |
| Lift height (see tables) | 3000 |
| Overall height with mast raised | 4055 |
| Height to top of overhead guard | 2140 |
| Seat height | 930 |
| Performance | |
| Travel speed, with/without load | 19/19.5 |
| Service brakes (mechanical /hydraulic /electric /pneumatic) | Hydraulic |
| Lifting speed, with/without load | 0.60/0.65 |
| Lowering speed, with/without load | 0.52/0.50 |
| Rated drawbar pull, with/without load | 11400 / 11500 |
| Gradeability, with/without load | 24 / 41 |
| IC Engine | |
| Manufacturer / Type | S4Q2 |
| Rated output to ISO 1585 | 28 |
| Rated speed to DIN 70 020 | 2500 |
| Number of cylinders / cubic capacity | Apr-05 |
| Miscellaneous | |
| Type of drive control | Powershift/1 |
| Maximum operating pressure for attachments | 180 |
| Oil flow for attachments | 62 |
| Towing coupling design / DIN type, ref. | PIN |
FAQ – Forklift Mitsubishi FD20CN 2 Ton
Berapa kapasitas angkat forklift Mitsubishi FD20CN?
Forklift Mitsubishi FD20CN memiliki kapasitas angkat hingga 2.000 kg dengan jarak pusat beban 500 mm, cocok untuk kebutuhan penanganan material industri.
Apakah forklift FD20CN mudah bermanuver di area sempit?
Ya, dengan turning radius 2020 mm dan desain yang ringkas, forklift ini mampu bermanuver dengan baik di lorong gudang yang relatif sempit.
Menggunakan mesin apa forklift FD20CN ini?
Unit ini menggunakan mesin diesel S4Q2 dengan tenaga 28 kW pada 2500 rpm, memberikan performa kuat dan stabil untuk operasional berat.
Bagaimana keamanan dan kenyamanan operator saat menggunakan forklift ini?
Forklift ini memiliki posisi duduk ergonomis, visibilitas yang baik, serta sistem rem hidrolik yang membantu meningkatkan keamanan serta efisiensi kerja operator.
Apakah tersedia layanan perawatan dan spare part?
Kami menyediakan layanan service berkala, perbaikan, dan ketersediaan spare part resmi Mitsubishi untuk memastikan forklift Anda selalu dalam kondisi optimal dalam jangka panjang.
